Fire pumping stations
The fire protection pumping stations offered by Miltom are a series of sets of automatic fire protection pumping stations. with different performance. These can be ready-made sets from SPP or individually designed by us.
Wydajne pompownie ppoż.

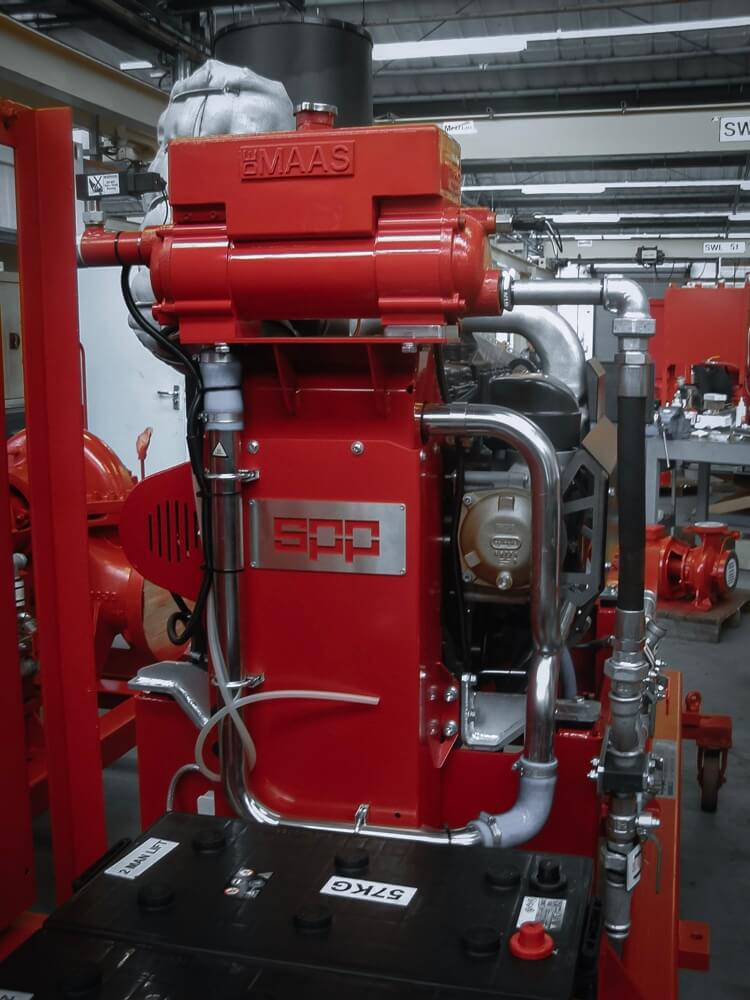

Fire Pumping Stations SPP Pumps Limited
Miltom specializes in the design, assembly and servicing of high-performance fire protection pumping station sets. and container fire pumping stations, used, among others, to power sprinkler, sprinkler, foam and hydrant installations. These can be ready-made sets from the SPP range or individually designed and manufactured by us. We select device parameters based on the requirements received from the client, ensuring strict adjustment to the needs of each project. Our fire pumping stations. are designed taking into account generally applicable law, UL design standards, requirements of device manufacturers and insurers, and optional customer expectations.
Fire protection pump stations equipment
Fire pumping stations are an essential element of any efficient water supply system for extinguishing fires, which is why it is so important to select appropriate components, such as, for example, appropriately efficient fire pumps – so that the entire system is efficient and ensures an appropriate level of safety. When designing a container fire pumping station, special attention should be paid to ensure that all system components meet safety requirements and relevant standards. The basic equipment of a container pumping station includes:
Elements of a fire pump station
Pumps
- main
- reserve
- maintaining constant jockey pressure
Power and control cabinet
- control room to which external power supply is connected
Internal steel pipes
- suction and discharge
- test
- power supply
- cooling system
Fittings
- cut-off
- regulatory
- measurement
Structure
- panel housing
- modular housing
Other items
- lighting
- heating
- gravity ventilation
- mechanical ventilation
Norms and safety standards
- PN-EN 12845 – Fixed fire extinguishing systems – Automatic sprinkler systems – Design, installation and maintenance.
- VdS-CEA 4001 Sprinkleranlagen. Planung und Einbau.
- Standard NFPA 20
- FM Data Sheets 3-2 Water Tanks For Fire Protection
- Certificate CNBOP-PIB
- National certificate of constancy of performance Nr. 063-UWB-0107
- National certificate of constancy of performance Nr. 063-UWB-0108
- Certificate UL
NFPA 20
FM Approvals
Approval Standard for Steel Tanks for Fire Protection
VdS-CEA
CNBOP-PIB
We have a positive opinion CNBOP

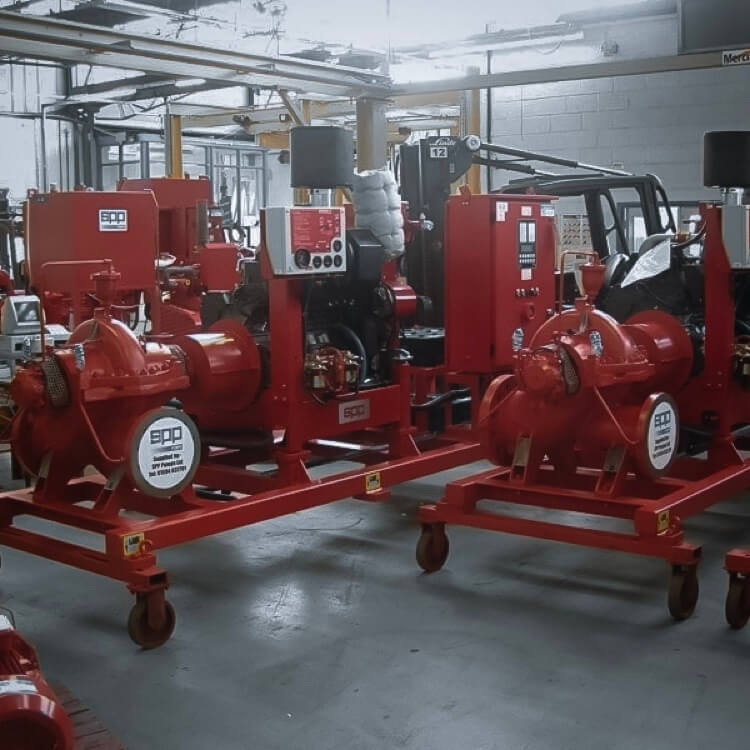

A set of SPP pumping stations for individual configuration
Single or multi-pump sets, horizontal suction with closed and long coupling, long-coupled distributor, multi-stage multi-tube and vertical turbine all driven by electric motor or internal combustion engine
Efficiency
- Final suction (single stage) – from 32 mm to 150 mm.
- Capacity up to 500 m3 / h.
- Lifting height up to 15.2 bar
- Capacity up to 230 l/s Lifting height up to 60 bar
- Split Case – from 80 mm to 300 mm. Lifting height up to 44.5 bar (approved fire set)
- Multi-stage socket – 100 mm to 125 mm. Capacity up to 315 l/s. Heads up to 60 bar
- Vertical turbine – from 200 mm to 508 mm.
- Capacity up to 9000 m3/h
- Multi-stage/multi-point – 50 mm to 250 mm.
- Capacity up to 850 m3 / h. Height up to 850 m. Up to 140 oC
Functions
- Final suction – a retractable Centreline rotary discharge element – can be removed without disturbing the piping
- Final suction – closely coupled, space-saving and cost-minimizing solution
- Axially rotatable housing swivel – can be removed without disturbing the piping
- Rigid box-section base plates for end suction components and long coupled housing assemblies
- Close tolerance stainless steel shaft designed to carry maximum load across the entire pump curve
- Large bearing arrangement • IE2 motors mounted as standard
- Machined rotors, hand finished
Additional information
- Meets the requirements of global insurance and fire safety approval institutions.

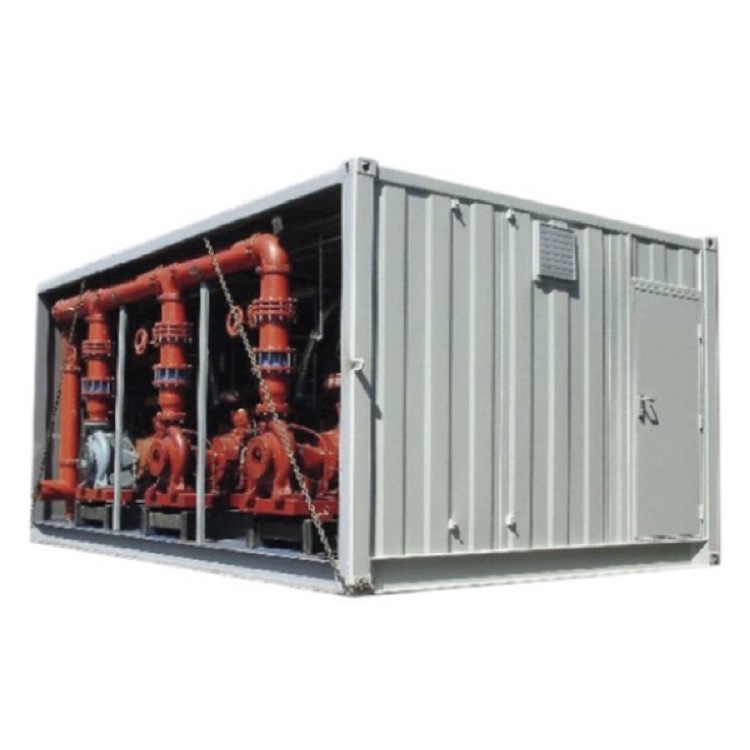

A set of SPP container pumping stations for individual configuration
Thanks to its compact dimensions, the container pumping station can be delivered and used wherever needed. In order to embed and prepare for work, you only need to design and prepare the foundation and make water and electrical connections.
Configuration
Design and supply of casing and installation in main fire pump sets, jockey pump, controllers, starters, all internal piping, test line, flow meter, wiring and lighting to ensure a fully packaged unit.
- Pumping stations are built in accordance with the following guidelines: VDS, NFPA, FM, PN-EN
- It is possible to install several pumps
- For use in objects of various types and sizes.
- Possibility of combining containers (modules) into larger installations
- The container is made in various fire resistance classes.
Efficiency
- Final suction (single stage) – from 32 mm to 150 mm
- Capacity up to 500 m3 / h. Lifting height up to 15.2 bar
- Final suction (multi-stage) – 100 mm
up to 125 mm - Capacity up to 830 m3 / h. Heads up to 60 bar •
- Split Case – from 80 mm to 300 mm
- Capacity up to 9000 m3/h.
- Height up to 44.5 bar
- Vertical turbine – from 200 mm to 508 mm
- Capacity up to 315 l/s. Height up to 31.1 bar
Equipment
- Electricity, ventilation and heating,
- Pump with a diesel or electric engine with parameters selected according to the design,
- Pressure drop pump in the installation,
- Pumping station piping,
- Electrical systems with main switchboard,
- Systems controlling the operation of pumping station equipment.
Other information
- We deliver a complete set, ready for immediate installation, on simple foundations
- Ease of installation at the workplace and connection to the fire extinguishing system
- One set responsible for the completeness of the pumping process
- Fully tested and pre-run kit. Tested using advanced object testing computer software
- An individually designed solution tailored to customer requirements
- Container CAD design
- Wall insulation to reduce noise
- Package sets tailored to customer requirements
Warranty protection and additional post-warranty packages from Miltom
Pump sets purchased at Miltom are covered by the manufacturer’s warranty and the care of the Miltom service operating throughout the country. In order to maintain the warranty, it is important to perform the inspections recommended by the manufacturer. It is possible to extend the standard warranty for a period of up to 5 years, ask your representative for details.
Send a message
Write to our expert →
For each fire protection installation, a pump set with appropriate capacity should be selected. That’s why we offer a free consultation at the stage of preparation for the project.
We will help you choose the appropriate capacity and type of fire pump set, tailored to your investment.
